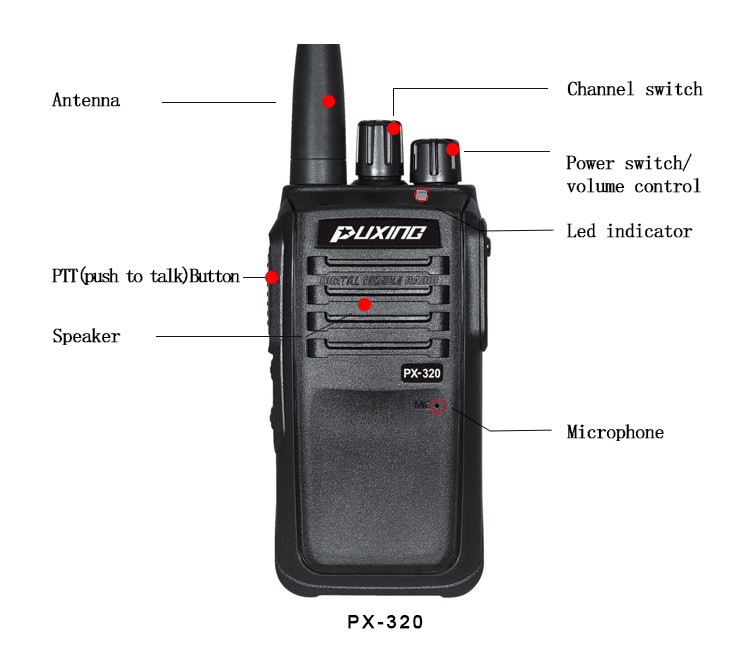

Model: PX-320
Frequency range: 400~470MHz
Output power: 10 W
Storage channels: 16 channels
Size: 115 mm *59 mm *35 mm (not including antenna)
Working mode: simplex/semi-simplex
Weight: 274.8g (including battery and antenna)
Transmitting part Receiving part
Frequency stability: ±2.5PPM Reference sensitivity: 0.2μV
Carrier output power: 10W Audio distortion: ≤5%
Modulation limit: ≤5KHz/2.5KHz Audio response: +2dB ~ -10dB
Audio distortion: ≤5% Co-channel suppression: ≥-8dB
Modulation characteristic: +3dB ~-3dB Adjacent channel selectivity: ≥60dB
Adjacent channel power: ≥65dB Intermodulation immunity: ≥55dB
stray RF component: ≤7.5μW Stray response immunity: ≥70dB
Occupied bandwidth: ≤16KHz Blocking characteristic: ≥84dB
