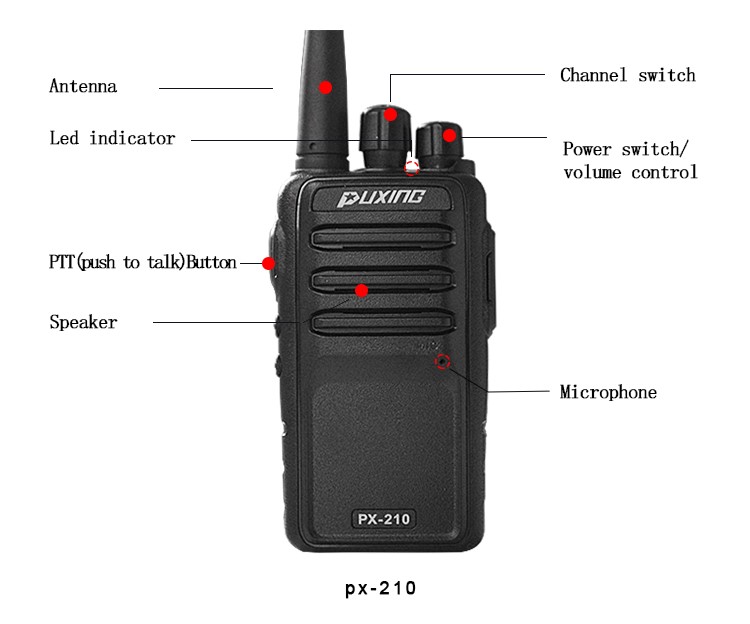

Model: PX-210
Frequency range: 400~470MHz
Storage channels: 16 channels
Size: 114mm * 59mm * 34mm (not including antenna)
Working mode: simplex/semi-simplex
Weight: 190g (including battery)
Antenna impedance: 50Ω
Receiving part: Transmitting part:
Reference sensitivity: <0.2uv Frequency stability: ±2.5ppm
Audio distortion: ≤3% Carrier output power: ≤10W
Audio response: +2dB~-10dB Modulation limit: ≤5KHZ/2.5KHz
Common channel suppression: ≥-8dB Audio distortion: ≤3%
Adjacent channel selectivity: ≥50dB Modulation characteristics: +3dB~-3dB
Intermodulation immunity: ≥65dB Adjacent channel power: ≥65dB
Stray response immunity: ≥70dB Stray RF component: ≤7.5uW
Blocking characteristics: ≥80dB Occupied roadband: ≤16KHz
