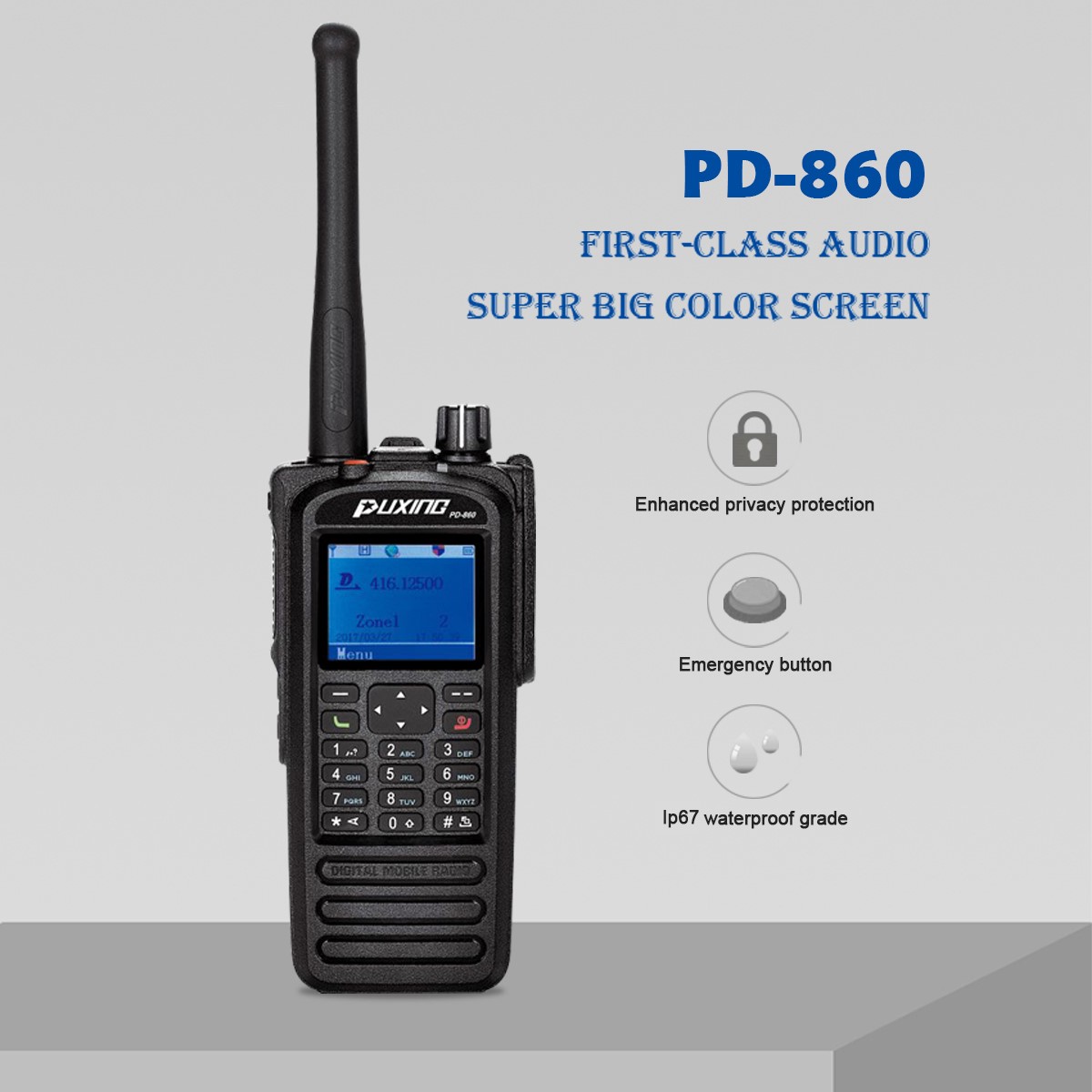

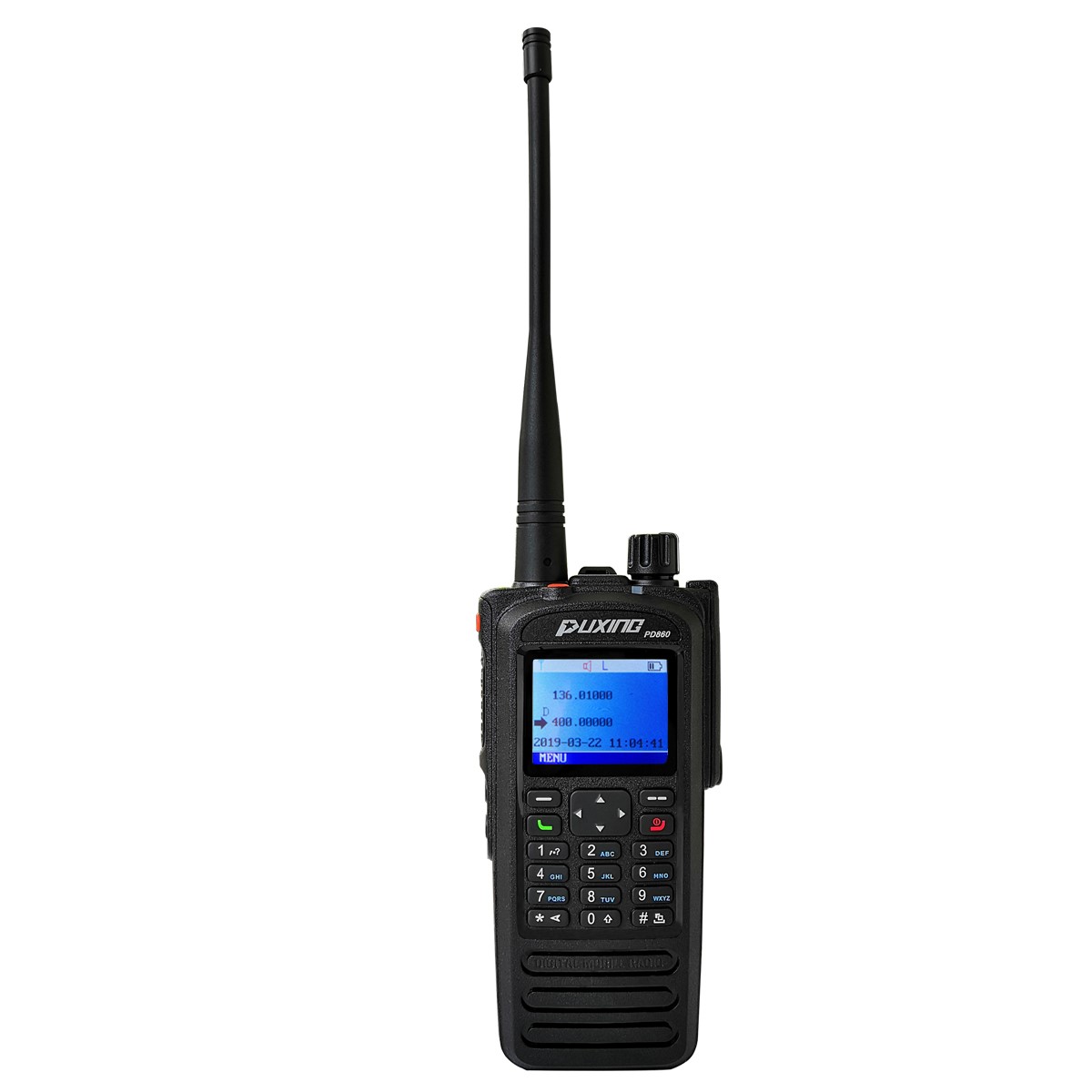

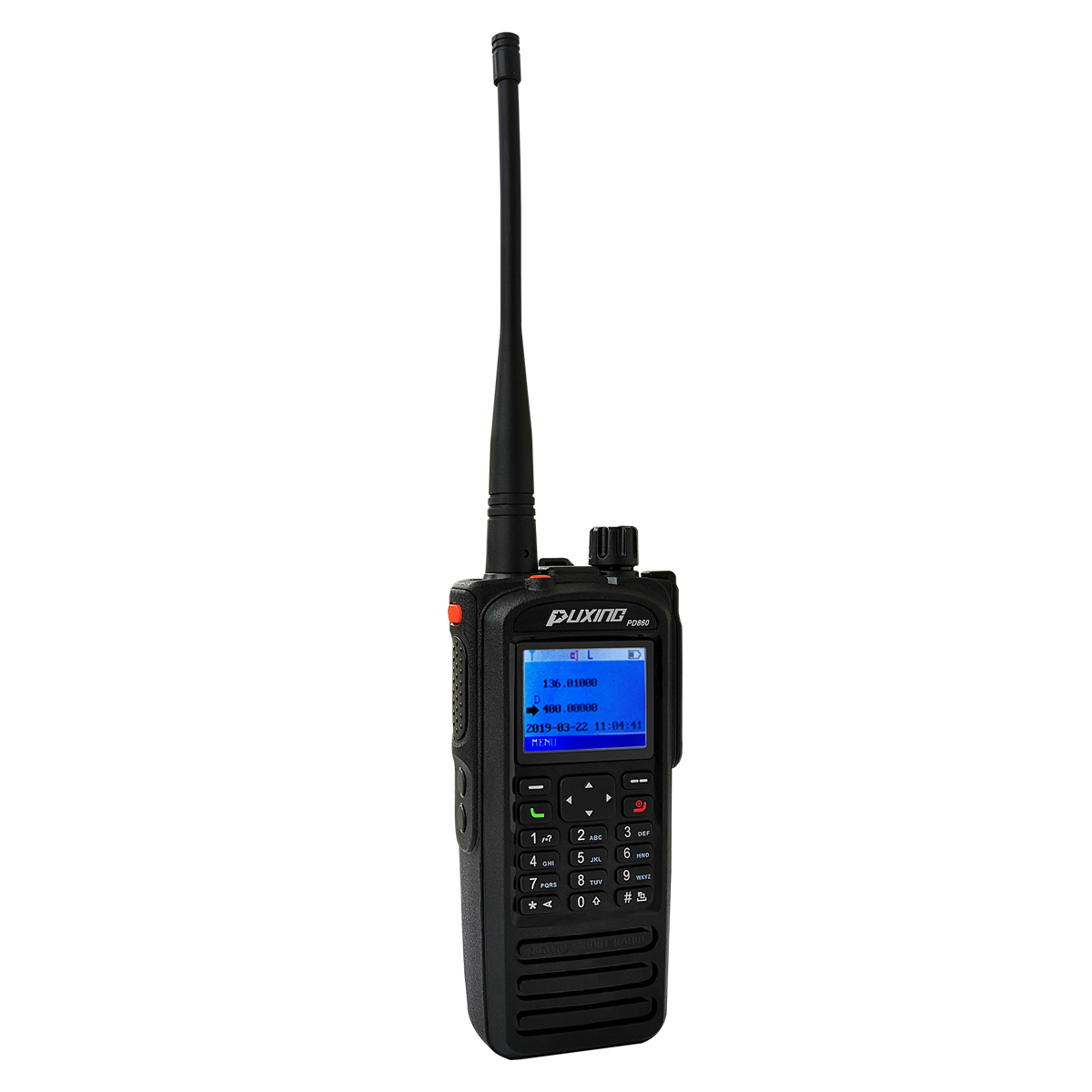

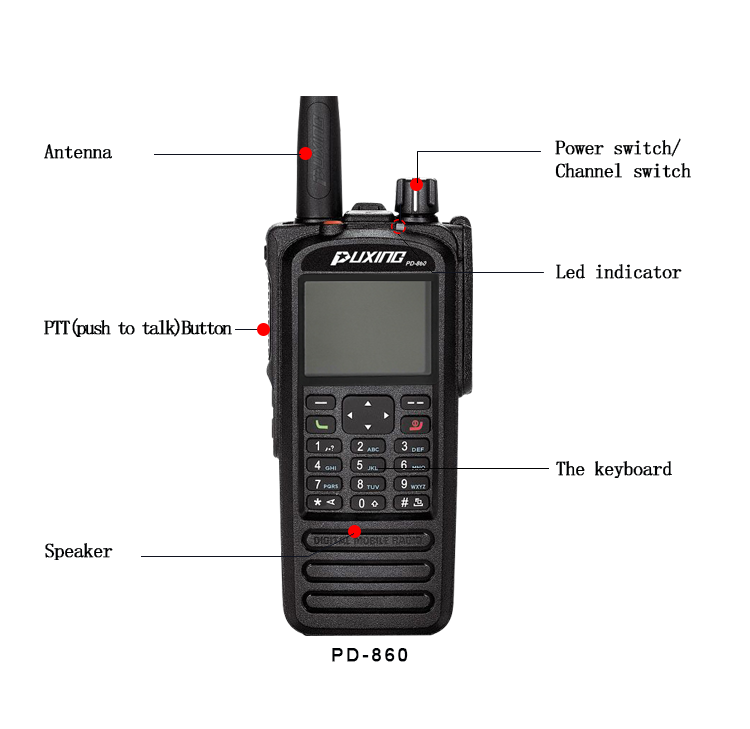

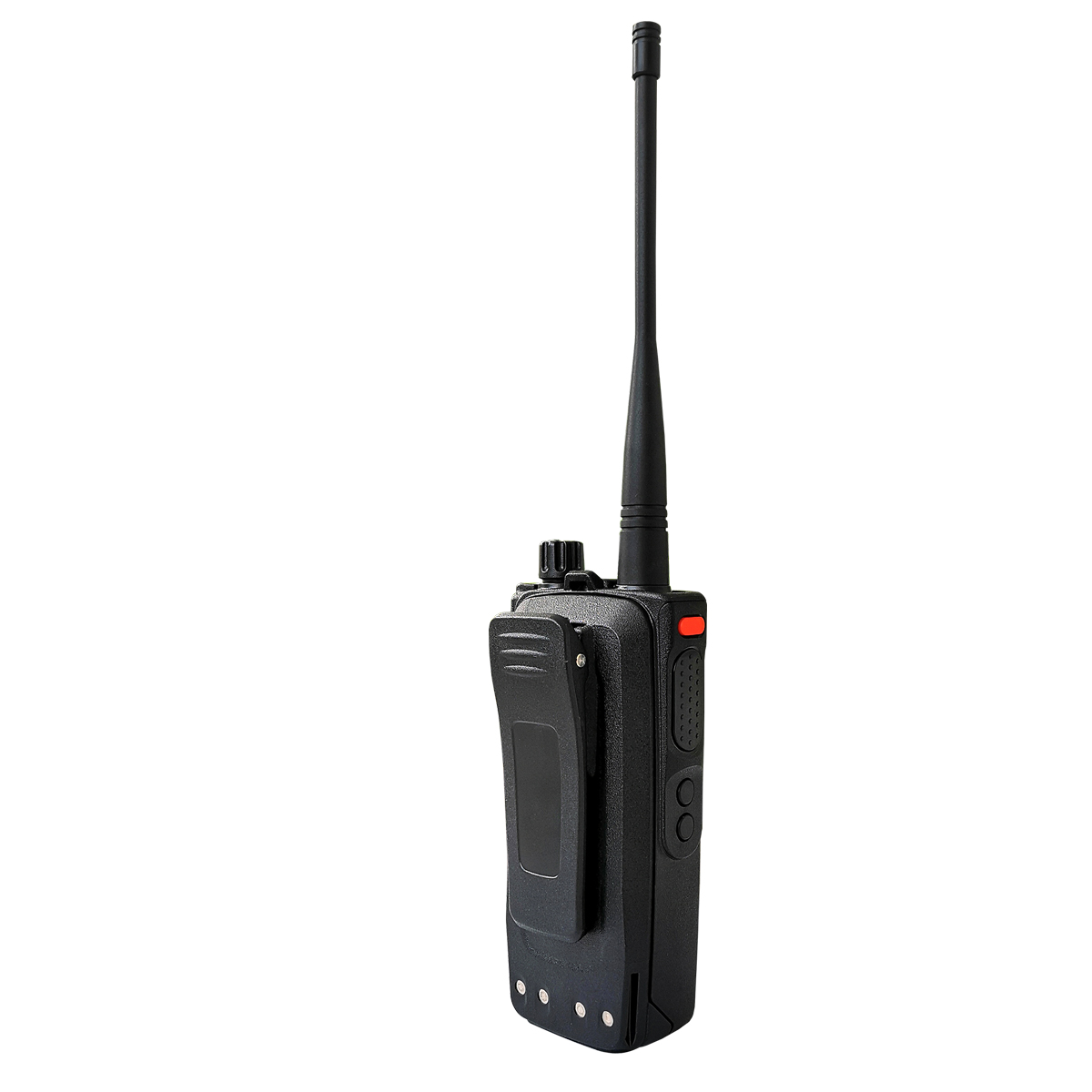

Mode: PD-860
Frequecy: 400-470MHz,136~174MHz 350~390MHz,66~88MHz
Channel Capacity: 1,000
Normal Operating Voltage: 7.4V
Operating Temperature: -30℃~60℃
Store Temperature: -40℃~85℃
Weight: 330g (estimate) With Standard Li-ion battery

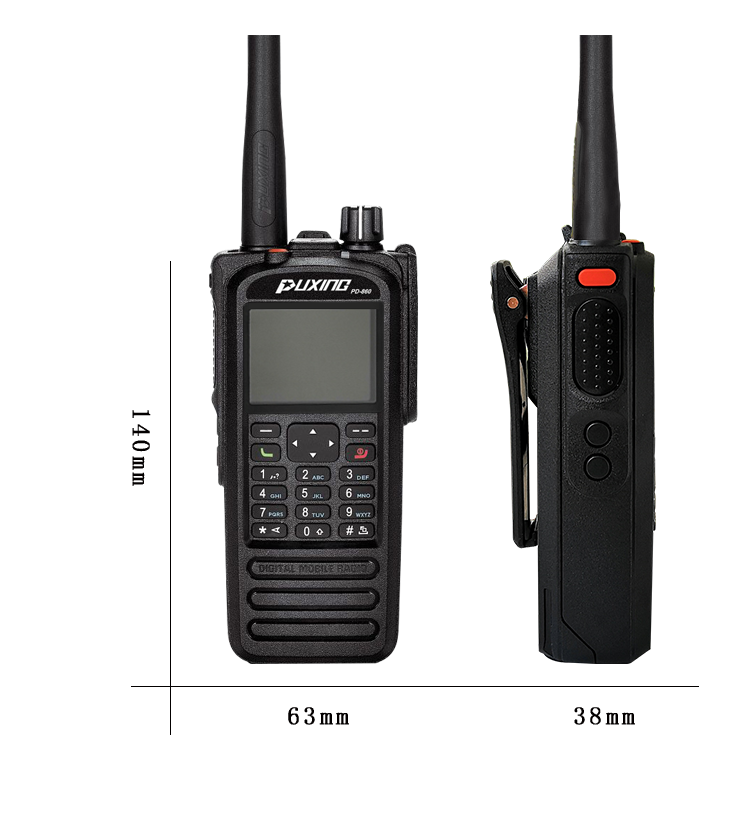

Dimensions:H x W x D: 140 x 563x 38 (not included antenna)
Dust-protection and water resistant: IP67

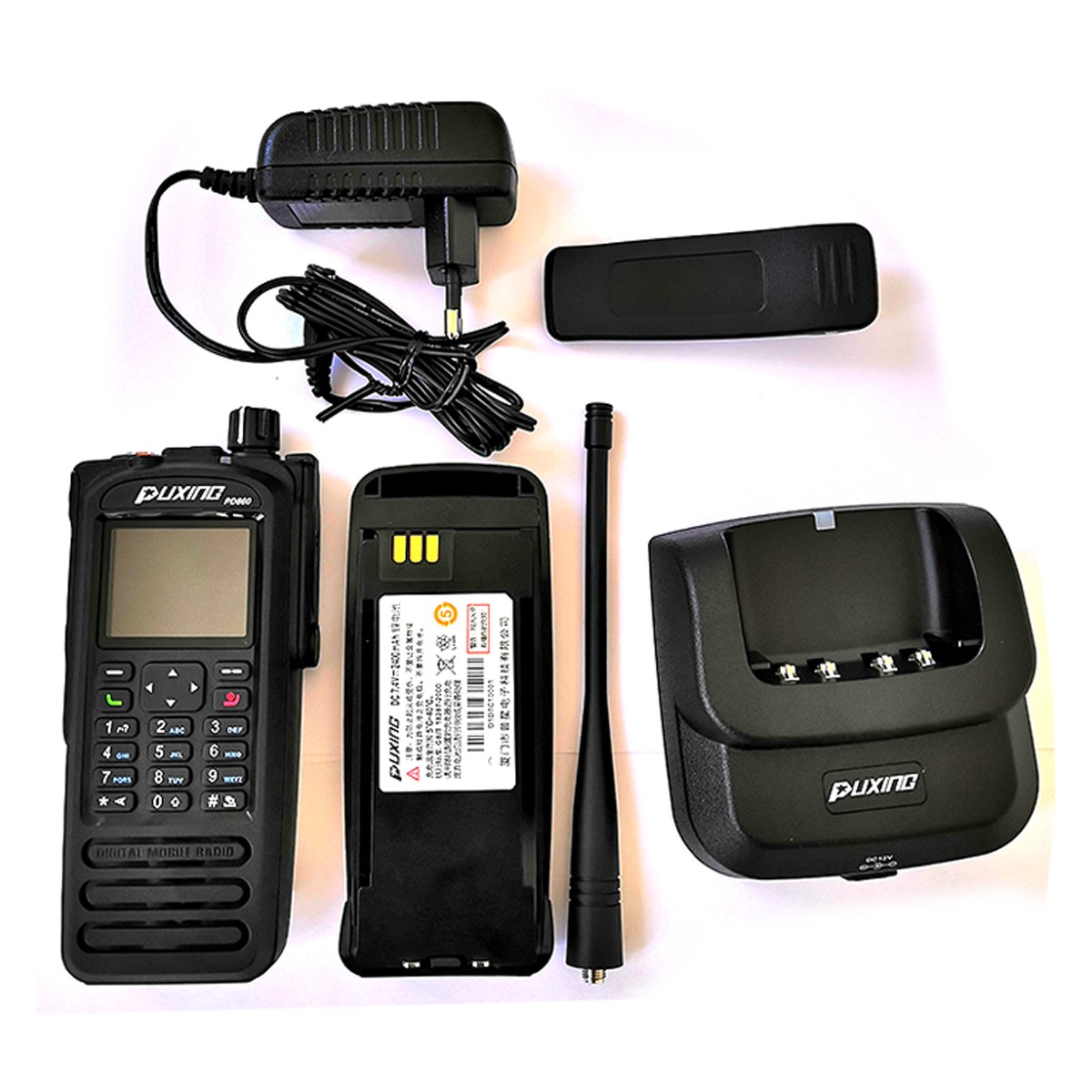

1800mAh Standard Li-ion battery: Analog:10hours; Digital:14hours
Transmitter
Channel Spacing: 12.5KHz
Frequency Stability: +/-1.0ppm
Power: Low Power1W; High Power 4W
Hum and Noise: -40dB@12.5KHz
Conducted, radiated spurious emission: -36dBm@<1GHz,-30dBm@>1GHz
Adjacent Channel Power: -60dB@12.5KHz
Adjacent Transient Channel Power: -50dB@12.5KHz
FM Modulation Mode: 12.5KHz:11K0F3E
4FSK Digital Mode: 12.5KHz(data only):7K60FXD 12.5KHz(data+voice):7K60FXE
Modulation Maximum Deviation: 2.5KHz@12.5KHz
Nonactive Slot Power: -57dBm
Audio Response: +1dB~-3dB
Audio Distortion: 5%(Type)
Digital Protocol: ETSITS 102 361-1,-2,-3
Vocoder Type: AMBE+2
Receiver
Channel Spacing: 12.5KHz
Frequency Stability: +/-1.0ppm
Analog Sensitivity: 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(Type)
Digital Sensitivity: 0.3uV/-117.4dBm(BER 5%) 0.7uV/-110dBm (BER 1%)
Intermodulation: ETSI:65dB
Adjacent Channel Selectivity: TIA603C:65dB@12.5KHz ETSI: 60dB@12.5KHz
Co-Channel rejection: 12dB@12.5KHz
Spurious Response rejection: ETSI:70dB
Conducted spurious emission: -57dBm@<1GHz,-47dBm@>1GHz
Blocking: 84dB
Rated Audio Power: 1W
Audio Response: +1dB~-3dB
Rated Audio Distortion: 5%(Type)
