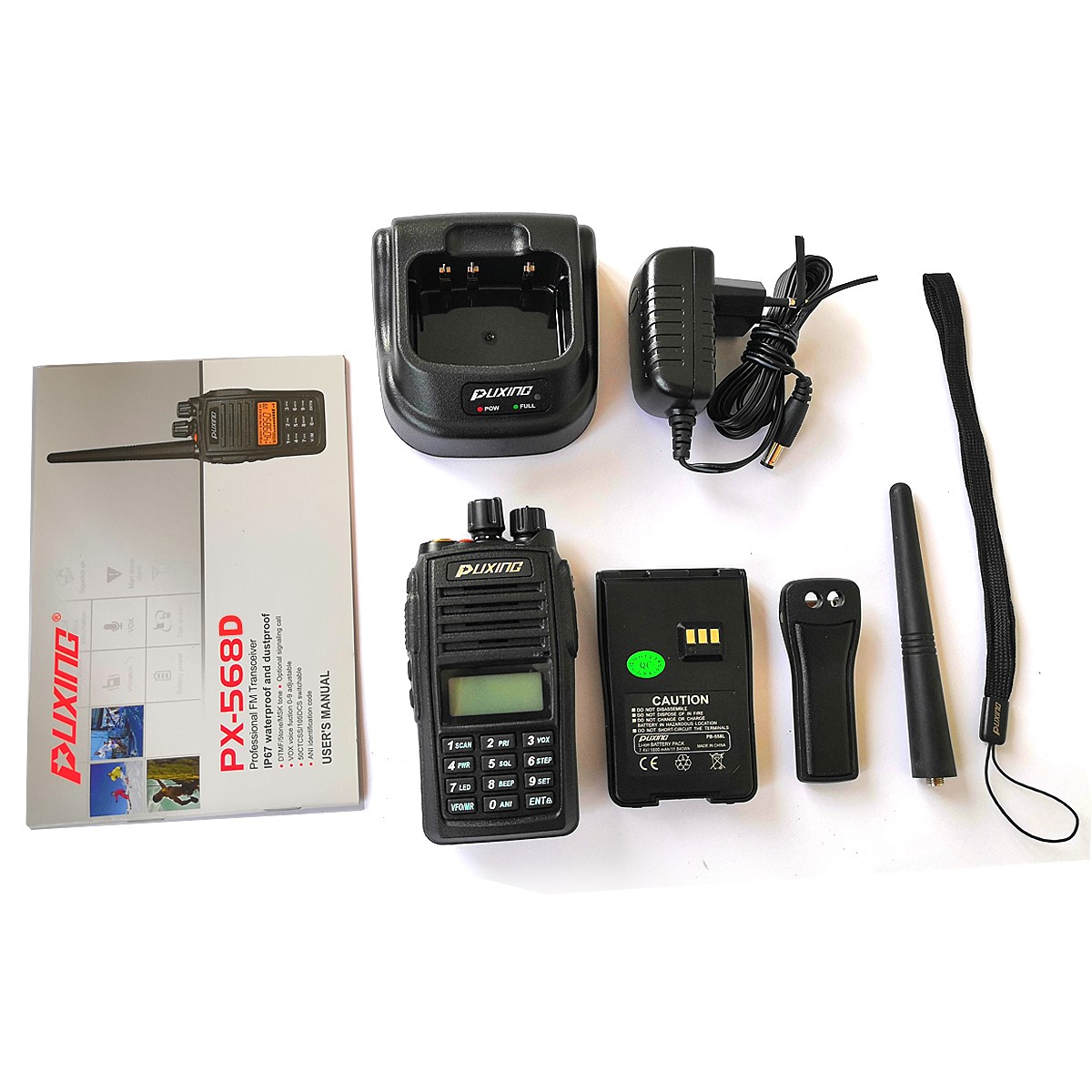

Model: PD-568D
Frequency Range: 136-174MHz 400-470MHz
Output Power: 5W
Channel Channel: 128(256 optional)
Weight: About 226.7g (with Li-ion Battery)
Dimension: HxWxD: 110*50*35mm(not include antenna)
Transmitter
Frequency stability: +2.5ppm
Modulation limiting: 5KHz@2.5KHz
RF Power Output: UHF 4.2W±0.5W/VHF 4.8W±0.5W
Audio Output: 1W
Modulation: very narrow(6.25Khz): 4K00F1E narrow(12.5Khz): 8K50F3E
Adjacent channel power: -70dB/-60dB(W/N)
Receiver
Audio Distortion: ≤5%
Receive Selectivity: <0.2μV
Adjacent Selectivity: 70dB/60dB
Intermodulation Distortion: ≥65 dB
Block: ≥85 dB
